Sega Master System Model 2 RGB Video Bypass Amp Mod Kit


Mod Kit Includes:

  • 1 x RGB Bypass Amp with full Audio & Video lines
  • 1 x AV Output Mount
  • 1 x AV Output Brace
  • 1 x High Quality, Gold Plated  9-Pin Mini DIN (Not from AliExpress/eBay)
  • 4 x Turret Posts


  • Adds high quality RGB video to the Master System 2 console
  • Robust, secure and easy to install AV output connector mount
  • 0.5% Tolerance Parts

Out of stock

Email when stock available

SKU: KIT-SMS2-RGBBYPASS Categories: , ,


A full featured Sega Master System 2 RGB video bypass amp with full audio and video lines, high quality connector, and easy to install mount and brace.

The output connector is a 9-pin mini DIN to be compatible with standard Mega Drive 2 SCART cables.

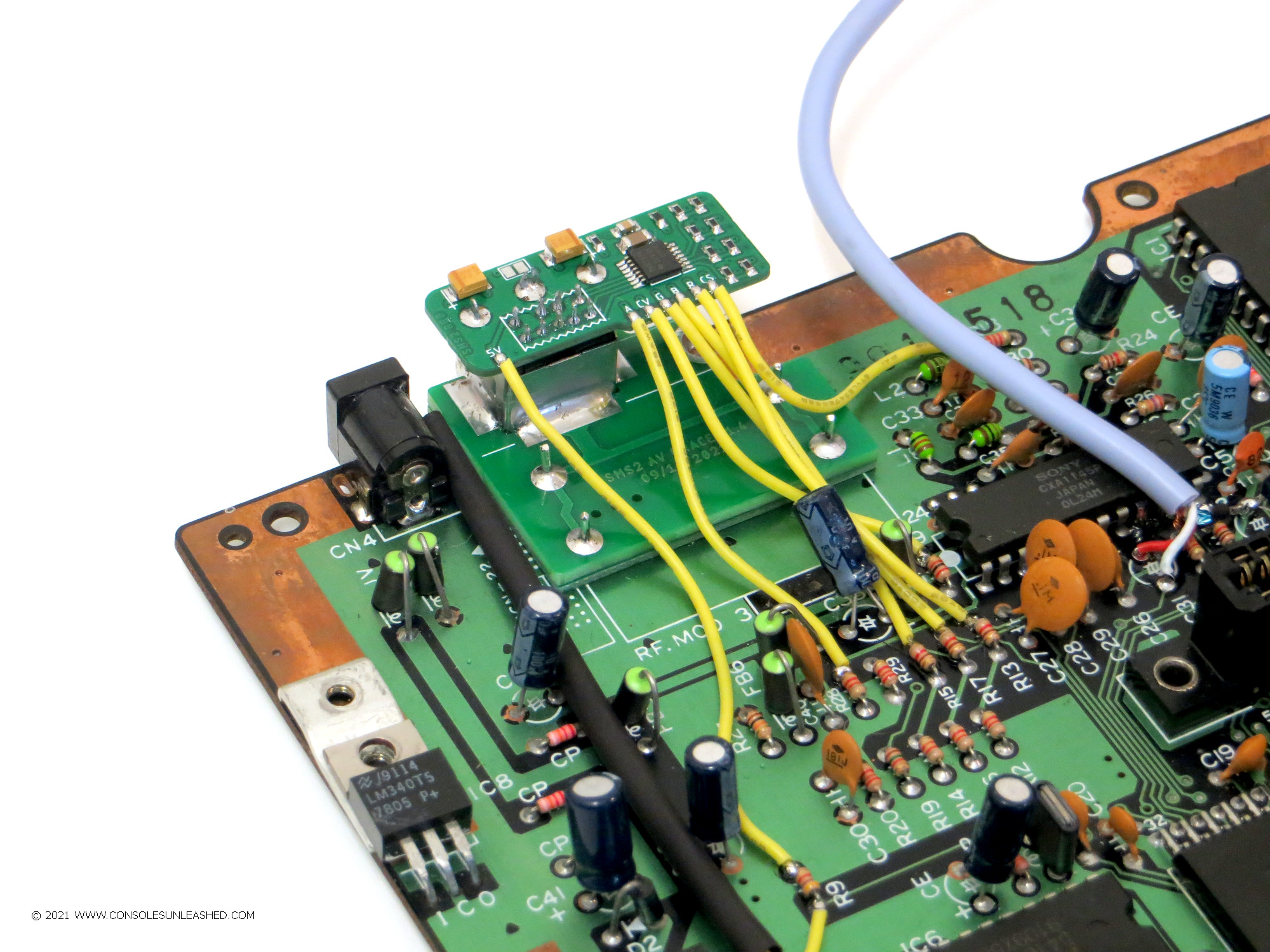

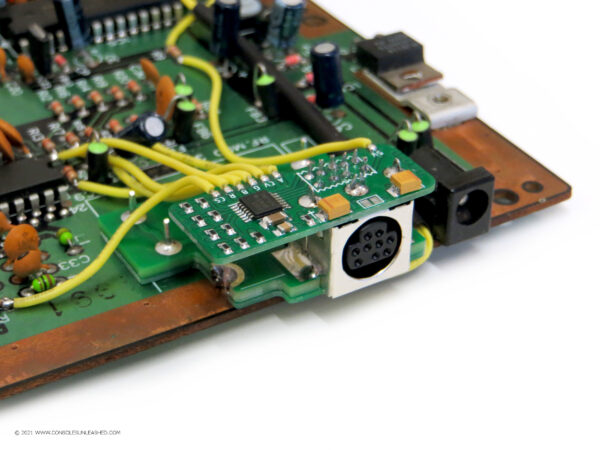

The design for the mount and brace assembly is an original design using a turret with a circular disc that fits into the brace and solders to both the mount and brace. It vastly improves upon older, similar designs. The PCBs have been purposely designed without ground planes to allow them to be held whilst soldering the turrets. The turret holes are not through plated which means that the whole assembly can be easily removed by simply de-soldering the protruding pins from the bottom of the Master System mainboard.

Additional information

Weight 0.013 g
Product Type

Mod Kit

Console Make


Console Model

Master System

Mod Attribute

AV Connector, RGB Bypass, RGB Video

Designed by

Consoles Unleashed
