Sega Genesis 3 Function Restore Helper PCB for VA2 Console Revision

Sega Genesis 3 Function Restore Helper PCB for VA2 Console Revision - Image 2

Sega Genesis 3 Function Restore Helper PCB for VA2 Console Revision

Mod Kit Includes:

1 x Genesis 3 Function Restore Mod-board.

Features:

Easily add back the removed Genesis 3 functions
Versions for “VA1” and VA2.
They look sweet

8 in stock

£2.00

SKU: KIT-SG3-FR-VA2 Categories: Mega Drive, Mod Kits, Sega

Description

Sega Genesis 3 function restore helper boards are simple little things to help when adding back the removed functions to Genesis 3 consoles.

The Sega Genesis 3 “VA1” console motherboard requires soldering wires between the cartridge port and PCB which can be difficult to do well. The “VA1” helper board adds some tracks which can be flooded with solder to connect with the pin under the cartridge port. When installed correctly it provides convenient solder pads for the function wiring to be done cleanly.

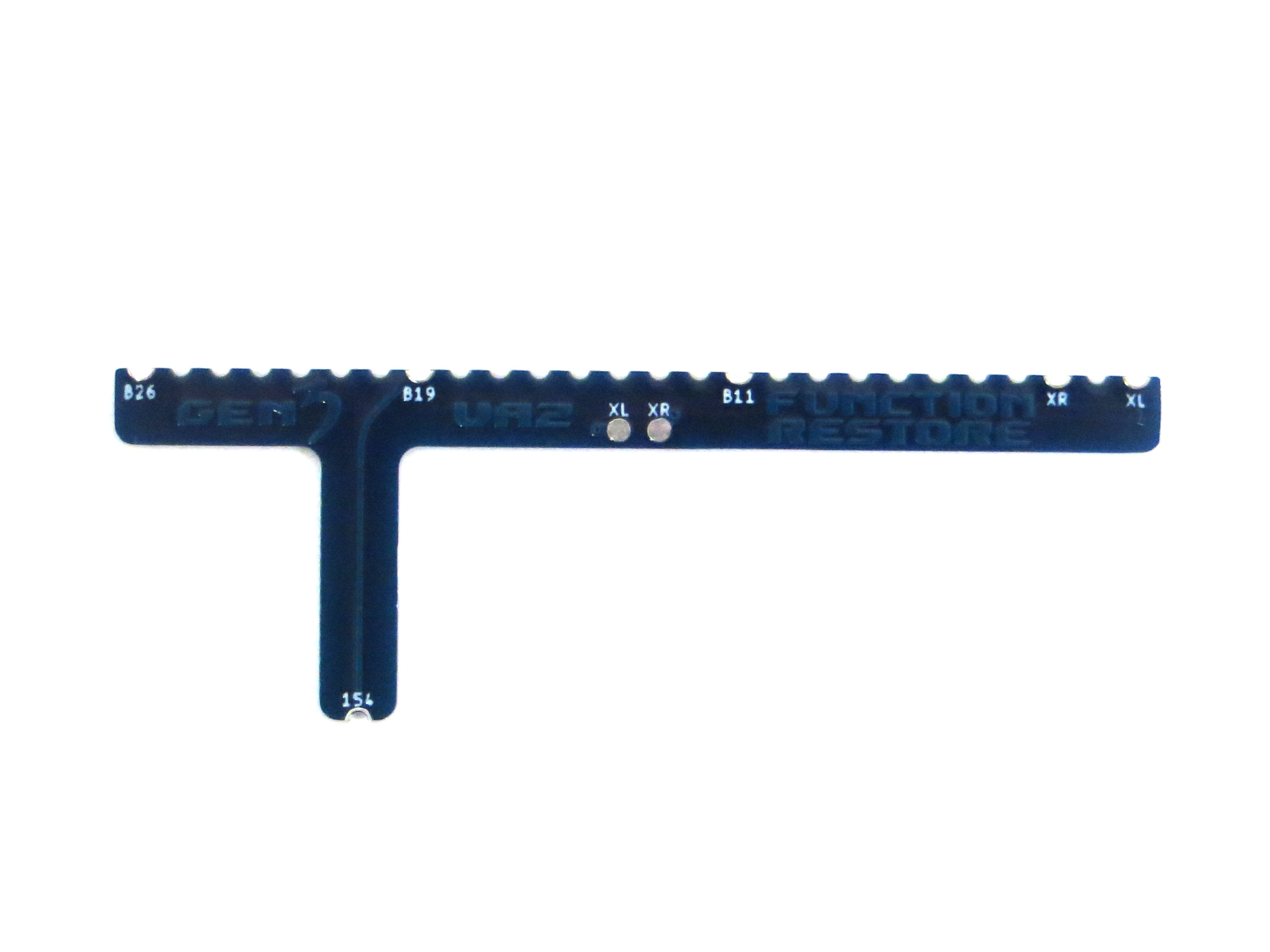

The Sega Genesis 3 VA2 console motherboard just requires two wires to complete the function restore mod. The VA2 helper board is a complete quick solder board which just makes the function restore cleaner. It also provides two convenient pads for Triple Bypass wiring.

Product Instructions

Install guide is here https://www.consolesunleashed.com/guides/sega-genesis-3-function-restore-install-guide/

Additional information

Weight	0.002 g
Product Type	Mod Kit
Console Make	SEGA
Console Model	Genesis 3, Mega Drive
Mod Attribute	Function Restore, Quick Solder Board
Designed by	Consoles Unleashed
Coded by	Not Applicable
HSCODE	85437000

Product Credits

Download free at GitHub https://github.com/consolesunleashed/sega-genesis-3-function-restore-helper-boards

Like 95% of my mod kits, this is not based on or influenced by any other design or mod kit seller. AN ORIGINAL IDEA BROUGHT INTO CREATION WITHOUT HURTING OR RIPPING OFF ANY OTHER MOD KIT SELLERS OR DESIGNERS. Imagine that. It’s really possible to invent new things in this scene.
